THE ORIGINAL REFERENCES
Find your Hampton
balustrade pattern.
Start with the line of the house. Straight pickets create a quieter verandah; a patterned top rail adds detail; a geometric centre panel gives a balcony a clear focal point. Use the brochure codes below when discussing your design.
Edition 18
Hampton designs appear on PDF pages 2–3. This edition also includes the HMP9 installation reference.
Official Heritage brochure ↗Read the pattern, then choose the setting.
The descriptions below record the visible arrangement of timber members. They help distinguish similar designs when choosing a white painted verandah, porch or balcony.
HMP1 · Open header and straight pickets
Straight vertical lower pickets sit beneath a shallow open band between two horizontal rails.
HMP3 · Central diamond lattice
An interwoven diagonal lattice occupies the centre; straight vertical pickets frame both ends. The diagonals form nested diamonds, not isolated X cells.
HMP3 · Framed cross bays
Tall crossed diagonal bays have inset framing around the intersection, with narrow vertical-picket groups between decorative bays.
HMP4 · Cross band over pickets
A shallow continuous row of X-shaped cells sits above straight vertical lower pickets.
HMP9 · Inset geometric bays
Heritage shows full-height crossed bays with inset rectangular framing and short picket groups between bays. Small brochure photographs do not resolve every joint. Confirm the workshop drawing before fabrication.
HMP4F · Continuous crosses
Every cell in the decorative top band contains an X.
HMP5F · Crosses at the ends
One X at each end of the shallow top band; rectangular open cells through the middle.
HMP6F · End and centre crosses
One X at each end, two adjacent X cells in the centre, and open rectangular cells between.
HMP7F · Paired centre crosses
Two adjacent X cells in the centre with open rectangular cells towards both ends.
HMP8F · Repeating paired crosses
Pairs of X cells alternate with a single open rectangular cell across the shallow band.
What does the F mean here?

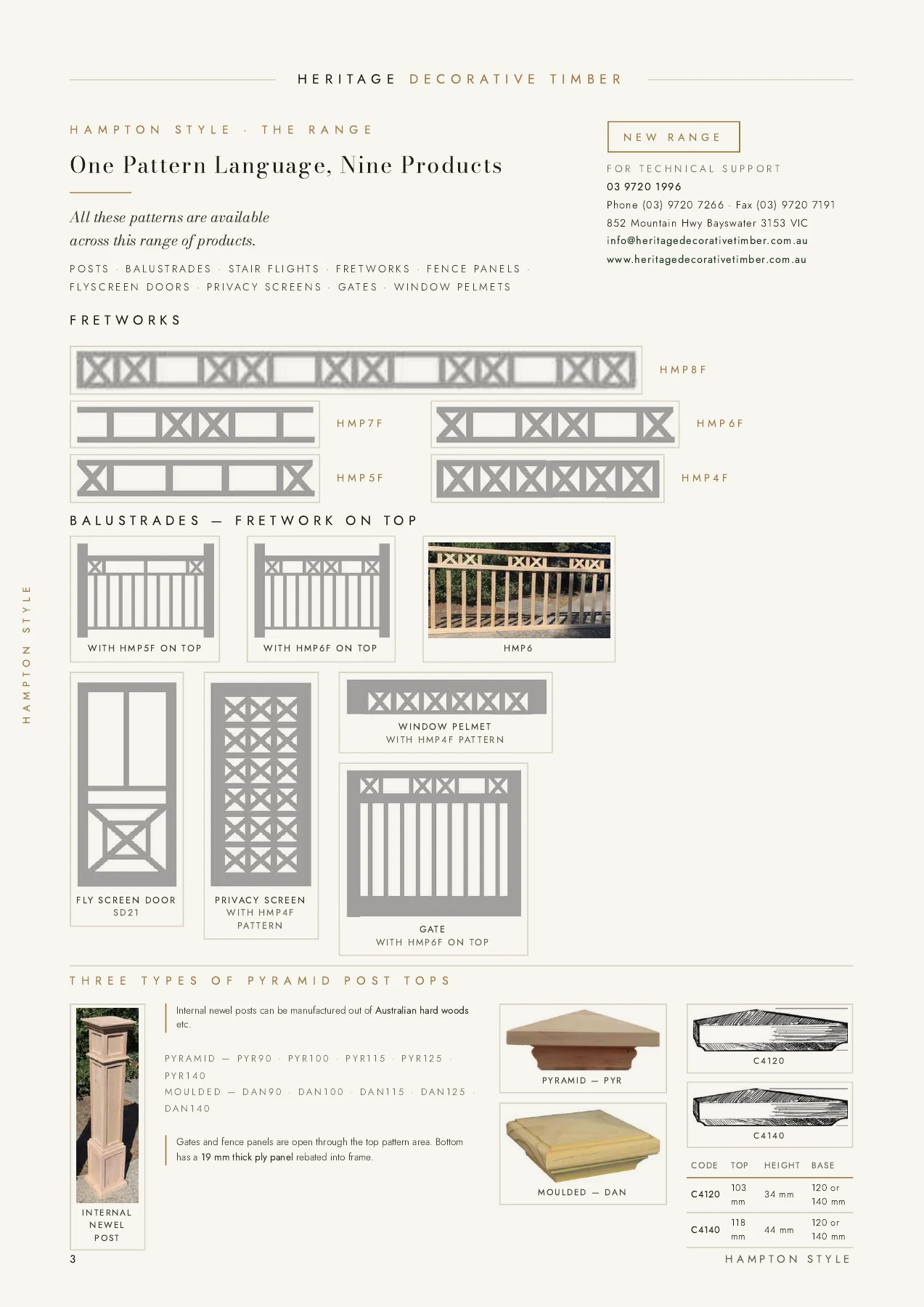

The brochures label HMP4F–HMP8F as fretwork patterns and show examples used above balustrade pickets. A top-band pattern does not specify every dimension or connection in a finished railing.
See the original Hampton pages.
Turn a reference into your own panel.
Measure each clear opening between posts and record the required finished panel height. Keep stair flights separate from level sections. Choose the pattern, finish and post treatment together so the verandah reads as one design.

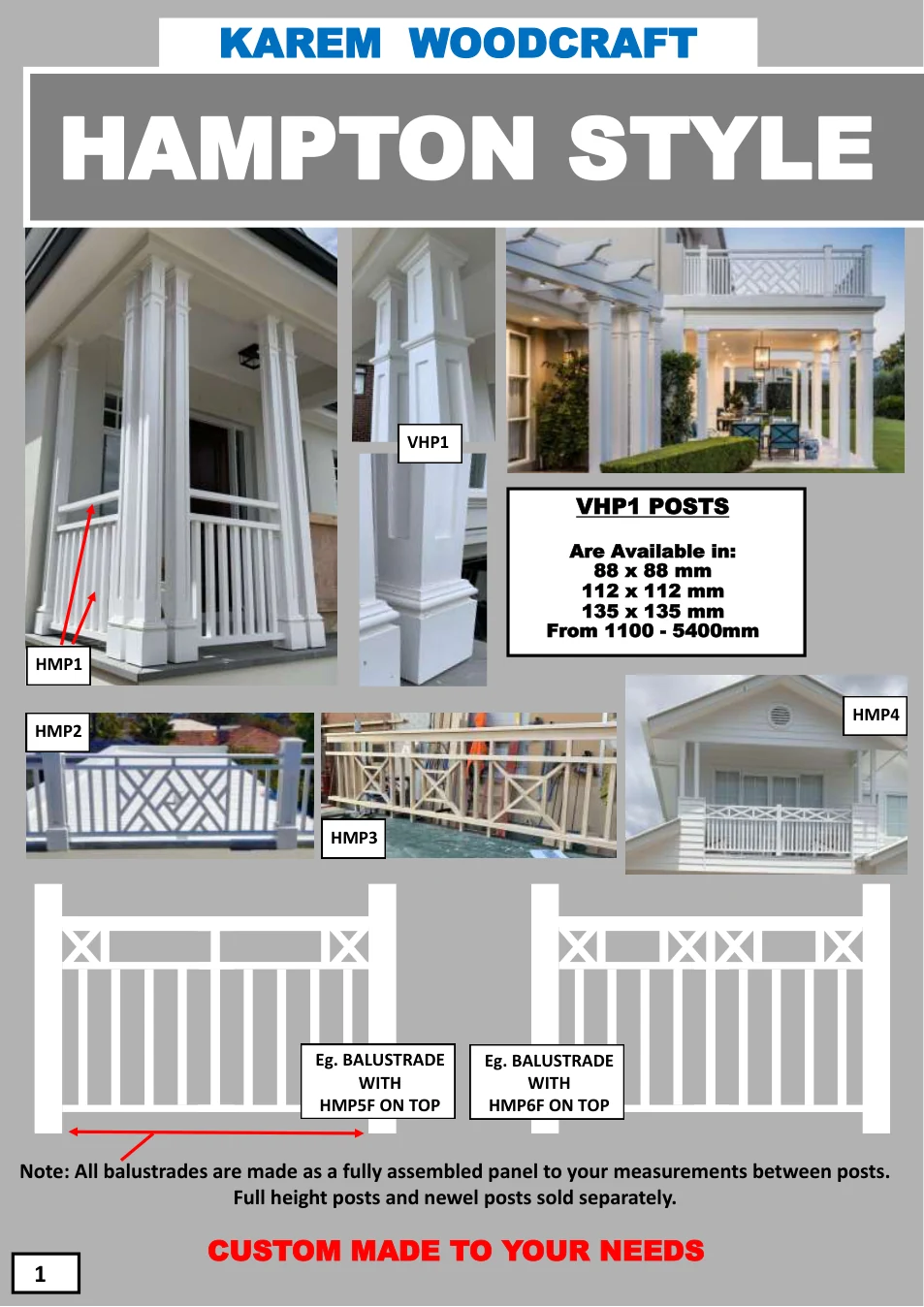

Both brochures describe assembled balustrade panels made to between-post measurements, with full-height and newel posts supplied separately. Confirm member sizes, construction and installation details for your project before manufacture.
Explore a 2.7 metre panel ↗Brochures checked 24 October 2026. Source photographs belong to their respective publishers.
